Product Details:
Payment & Shipping Terms:
|
| Name: | M-15 Oxygen Sensor | Application: | Ventilator |
|---|---|---|---|
| Material: | ABS | Color: | White |
| Feature: | Original And New | ||
| Highlight: | Medical O2 Sensor,Oxygen Sensor Medical |
||

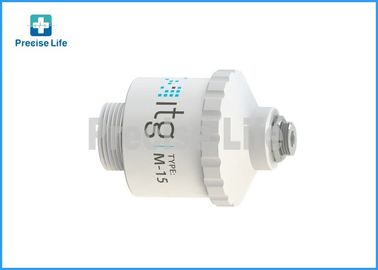

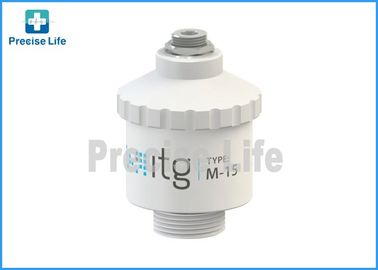

Original ITG M-15 Oxygen sensor with mono jack M15-O2 sensor white color housing
Description of medical Oxygen sensor:
The oxygen sensor cell M-15 is a oxygen measurement cell offering a long life-span for use in hospitals
and other medical environments. It is an oxygen sensor with 3.5 mm headphone mono jack compatible
with many instruments and incubators. The sensor cell offers superior performance with a stable linear
output signal and only requires a simple periodic one-point calibration
Specification of medical Oxygen sensor:
|
Output Voltage |
8-12 mV |
|
Measurement range |
0 to 100% O2 |
|
Output connector |
3.5mm mono jack |
|
Accuracy |
Within +/- 1% of full scale at constant temperature and pressure |
|
Response time |
< 12 seconds |
|
Operating humidity |
0 to 99% RH (non-condensing) |
|
Operating temperature |
0 degree to 40 degree |
|
Storage temperature |
0 degree to 20 degree |
|
Warranty |
12 months |
Compatible with:
Oxygen sensor cells:
* Envitec OOM102-1
* ATOM OX-60
Instruments:
* Envitec OxiQuant M
* Ohio Medical (MSA) MiniOX 3000
* Spacelabs 015-0285-00
* Stephan Artec, Christina
* Taema Alys, Clarys, YR010100
* Teledyne TED AX300, MX300
More compatible information contact us for details.
Advance:
Costs less than the sensors it replaces, creating additional savings while providing superior quality.
Note: All brands name above for reference only!
